(GSM modem kit)
|
| |
- Allows connection to any Squirrel data logger remotely
- Uses GSM cellular network, ideal where no land lines are available
- Operates on Quad band versions 850/900/1800 MHz and 1900 MHz
- Suitable for most applications including use at urban sites, remote
- sites or in mobile applications
- Collects data at speeds up to 9600 baud
- Supplied with connecting cable, power lead and antenna
|
 |
|
(Netport RS232 to Ethernet converter)
|
| |
- Converts the original Squirrel data logger's RS232 output into Ethernet
- for remote or distributed monitoring
- Allows the logger to plug in at any point on an existing Ethernet network
- making data easily accessible to anyone
- No modification to logger required
- Requires an existing Ethernet network for connection
|
 |
|
(HandyPort wireless RS232 converter)
|
| |
- Transmits the Squirrel data logger's RS232 output wirelessly to a PC running SquirrelView
- Maximum range is 500m using an external antenna (100m as standard)
- Baud rates of up to 116 K; 2.4GHz frequency
- Plug and play configuration and via the in-built communications wizard in SquirrelView
- Low power consumption
|
 |
|
數據記錄儀附件的技術參數
|
| |
| 產品名稱 |
GSM Modem Kit Specification |
| Power supply (external adaptor cable included to power from optional SQ mains adapter - MPU12) |
5.5 to 32 VDC |
| Current consumption (when transmitting) |
<480 mA @ 5.5V |
| Current consumption (when in standby) |
<20 mA |
| Environmental operating temperature |
-30 to +75°C |
| Sensitivity (SMA antenna connector; operates on quad band versions 850/900/1800 & 1900MHZ systems) |
109 dB @ 900 Mhz |
| Communication |
V24/RS232C, 9 pin sub-D 2.4, 4.8, 9.6, 14.4 kb/s |
| LED indicators |
for CD, RI and GSM contact |
| Dimensions |
73 x 54.5 x 25.5 mm |
| Weight |
80 g |
*Grant software and data cable required (along with data enabled SIM card from mobile phone service provider)
|
| 產品名稱 |
Netport RS232 to Ethernet Converter Specification |
Power requirements (external adapter cable included, powered from optional SQ mains adapter
- MPU12) |
7.5 to 24 VDC, 240 mA @ 7.5V, 75 mA @24V |
| Environmental operating temperature |
<160 mA |
| Dimensions |
28 x 42 x 65 mm |
|
|

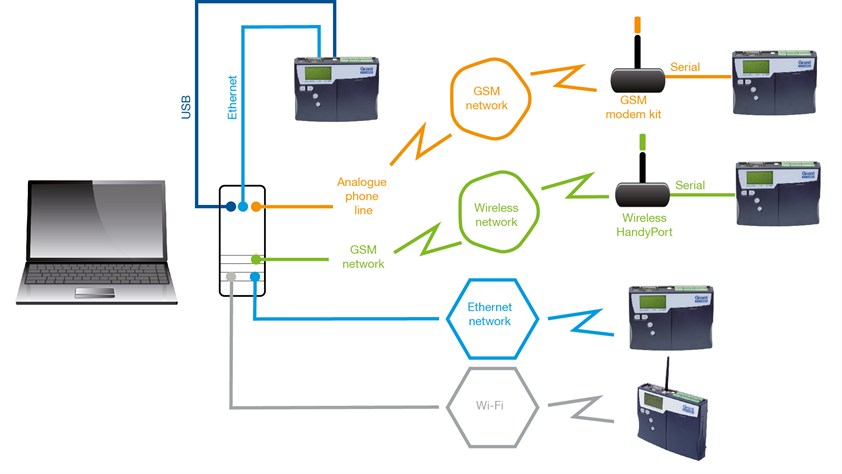

Squirrel Networking
|
| |
 |
| |
 |
