A powerful portable data logger for everyday use
|
 |
Squirrel SQ2010型數據記錄儀(Squirrel SQ2010)
|
| |
The Squirrel 2010 is a versatile, general purpose logger, with 4 to 8 analogue input channels to measure current, voltage, resistance and temperature, plus 8 digital channels. All can be logged or used as triggers to automatically start or stop logging.
|
 |
|
It is a compact, portable logger which is also suitable for bench based and fixed installations. Easily programmed via the four integral push buttons and large graphical display and with a basic accuracy of 0.1%, the Squirrel 2010 is able to fulfil many routine data logging needs, including more demanding applications requiring up to 10 readings per second on one channel.
|
- Flexible
- Very easy to use
- Economical
- Handheld, ergonomic design
- USB connectivity with PC
- Ethernet or RS232 communications options available
- Extended battery life for unattended logging
|
|
Squirrel SQ2010型數據記錄儀的特點
|
| |
 |

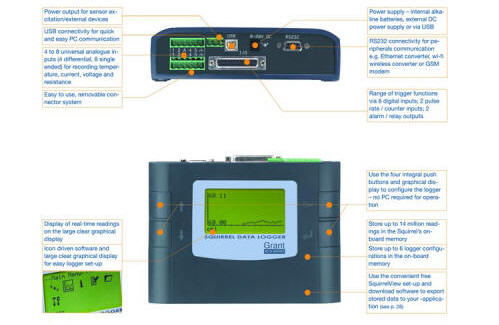

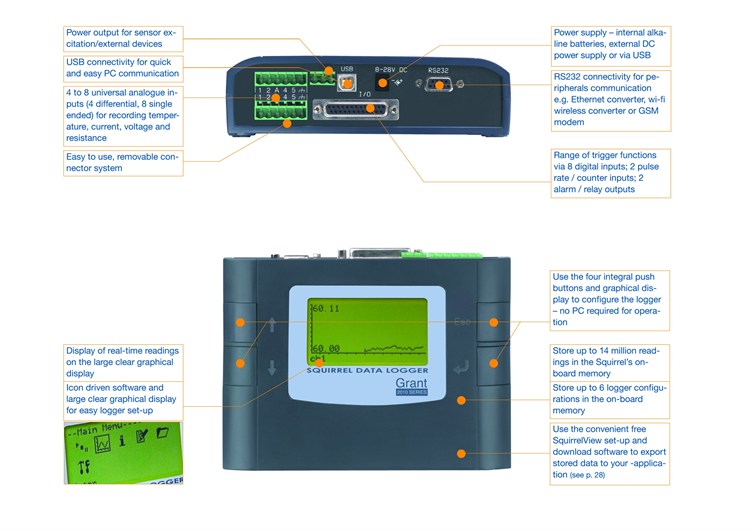

Key Features |
| |
- Compact, portable data logger
- Powered from internal cells, external PSU or via USB connection
- 4 to 8 universal analogue inputs (current, voltage, resistance, temperature) plus 8 digital inputs
- 16 derived/calculated channels
- 2 alarm outputs
- 2 pulse counter inputs (1 at up to 64kHz, 1 at up to 100Hz)
- Configured via large easy-to-read graphical display
- 0.1% accuracy, 24-bit A to D conversion
- Up to 14 million readings
- Supplied with SquirrelView set-up/download and export software
- Up to 10 readings per second on 1 channel
|
|
Analogue inputs supported |
| |
- Thermistors
- Thermocouples
- Voltage
- Current
- Resistance
|
|
Key Capabilities |
| |
- Create complex schedules of logging rates, triggers and alarm outputs
- Scale and view readings in real time on the integral display or on a PC running SquirrelView or Excel
- Display readings in preferred engineering units e.g. Hz, Bar, Pascals, Nm etc.
- Select logging rates up to 10 Hz. Single channel only
- Derive up to 16 calculated (virtual) channels from real input channels using mathematical functions
- Concurrently sample channels at different sample speeds
|
 |
|
The Squirrel 2010 series comprises of two versions
|
| |
|
SQ2010 |
| |
Includes the following;
- Fitted Foam Lined Case
- SquirrelView Software
- Getting Started Guide including Certificate of Conformity
- USB connection cable
- Full set of Connection Plugs complete with Cable Ties
- Pack of 4 Precision Resistors for 4-20mA connection
- Set of C type Batteries
- Small Electrical Screwdriver
|
|
SQ2010 Kit |
| |
Includes all of the above, plus the following items;
- SquirrelView Plus Software
- Universal Mains Power Adaptor (110-240 Vac)
|
|
Squirrel SQ2010型數據記錄儀的技術參數
|
| |
| 產品類型 |
入門級 |
標準型 |
高速型
Wi-Fi版 |
高性能型
Wi-Fi版 |
高性能型
Wi-Fi版 |
溫度型 |
| 產品型號(SQ) |
2010 |
2020-1F8 |
2020-2F8 |
2040-2F16 |
2040-4F16 |
OQ610-S |
| 模擬信號通道 |
4～8 |
8～16 |
8～16 |
16～32 |
16～32 |
無 |
| 高電壓通道 |
無 |
2 |
2 |
2 |
2 |
無 |
| 數字通道 |
8 |
8 |
8 |
8 |
8 |
無 |
| 計數通道 |
2 |
4 |
4 |
4 |
4 |
無 |
輸
入
類
型 |
-電流 |
標配 |
標配 |
標配 |
標配 |
標配 |
無 |
| -電壓 |
標配 |
標配 |
標配 |
標配 |
標配 |
無 |
| -電阻 |
2-線 |
2-線 |
2-/3-/或4-線 |
2-線 |
2-/3-/或4-線 |
無 |
| -3或4線*** |
無 |
無 |
4 |
無 |
8 |
無 |
| -溫度 |
標配 |
標配 |
標配 |
標配 |
標配 |
6xK/T熱電偶 |
| 最大記錄數/秒 |
10 (1ch) |
20 (1ch) |
100 (2ch) |
100 (2ch) |
100 (4ch) |
8 |
| 準確度 |
0.10% |
0.05% |
0.05% |
0.05% |
0.05% |
0.5°C |
| 顯示方式(LCD) |
128x64 dot |
128x64 dot |
128x64 dot |
128x64 dot |
128x64 dot |
2x16字符 |
| 存儲器容量(計數) |
14百萬 |
14百萬 |
14百萬 |
14百萬 |
14百萬 |
0.25百萬 |
| 外接-MMC/SD卡 |
無 |
標配 |
標配 |
標配 |
標配 |
無 |
| RS232接口 |
標配 |
標配 |
標配 |
標配 |
標配 |
無 |
| USB 接口 |
標配 |
標配 |
標配 |
標配 |
標配 |
標配 |
| 局域網** |
無* |
無* |
標配 |
標配 |
標配 |
無 |
| Wi-Fi選擇** |
無* |
無* |
標配 |
標配 |
標配 |
無 |
| 報警輸出 |
2 |
4 |
4 |
4 |
4 |
無 |
| 傳感器電源輸出 |
常規5VDC@50 mA/外供28V(SQ2010)&18V(其它)@100mA |
無 |
| 設定/分析軟件 |
SquirelView/SquirrelView Plus |
| 使用環境 |
-30～65℃/RH<95% (不結露) |
* Can use RS232 to Ethernet converter and RS232 to Wi-Fi converter, see section for accessories
** for Ethernet or Wi-Fi networks external power pack is required
*** Pt100/Pt1000
|
| |
 |
