Squirrel SQ2020型數據記錄儀(Squirrel SQ2020 series)
|
| |
Squirrel 2020 series offers high performance universal data loggers packed with powerful features to provide great flexibility to handle a wide range of routine and demanding applications.
|
 |
|
Hand-held and lightweight, the Squirrel 2020 models are easy, fast and convenient to use - either as stand-alone loggers or as PC-linked data acquisition systems in industrial and scientific research and quality assurance applications.
|
|
Twin processors, multiple 24-bit analogue-to-digital converters, up to 16 universal channels and a choice of communications methods ensure that the Squirrel 2020 series provides state-of-the-art data logging and communication capability for sophisticated applications needs.
|
- Up to 16 universal inputs
- High precision (0.05%)
- Advanced data management to MMC/SD card or PC
- Flexible communications (USB, Ethernet, RS232)
- High speed option (100Hz)
- Various Remote connection options e.g. via Ethernet or dial up modem
|
|
Squirrel SQ2020型數據記錄儀的特點
|
| |
 |

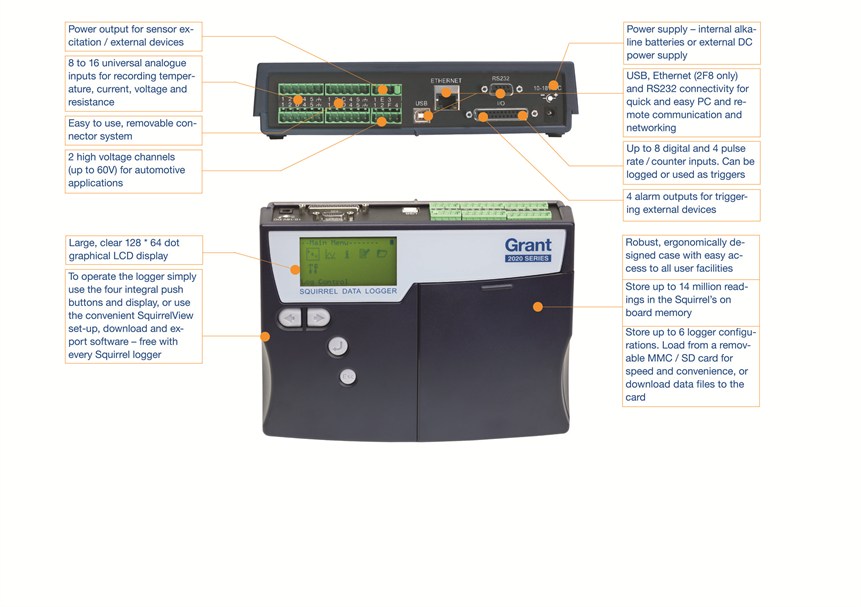

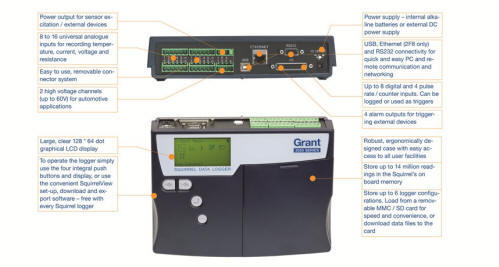

Key Features |
| |
- Standalone data logger or link to a PC
- Compact and portable
- 8 to 16 universal analogue plus 8 digital inputs
- Up to 16 derived /calculated channels
- 4 alarm outputs
- 4 pulse rate / counter inputs (2 at up to 64kHz, 2 at up to 100Hz)
- Configured via integral interface or via PC
- 0.05% basic accuracy
- Up to 14 million readings
- Removable MMC / SD card
- In-built Ethernet networking capability (SQ2020-2F8 only)
- USB and RS232 connectivity
|
|
Analogue inputs supported |
| |
- Thermistors
- Thermocouples
- Pt100/Pt1000 (maximum of four 3 or 4-wire Pt100/1000 sensors)
- Voltage
- Current
- Resistance
|
|
Key Capabilities |
| |
- Create complex schedules of logging rates, triggers and alarm outputs
- Scale and view readings in real time on the integral display or on a PC running SquirrelView or Excel
- Display readings in preferred engineering units e.g. Hz, Bar, Pascals, Nm etc.
- Select logging rates up to 100 readings per second on up to 2 channels (20Hz maximum on Squirrel model 2020-1F8)
- Derive up to 16 calculated (virtual) channels from real input channels using mathematical functions
- Concurrently sample channels at different sample speeds
|
 |
|
The Squirrel 2020 series comprises of two versions
|
| |
|
Squirrel 2020-1F8 |
| |
- Up to 20 readings per second on 1 channel
|
|
Squirrel 2020-2F8 (high speed model) |
| |
- Up to 100 readings per second on 2 channels
- In-built Ethernet connectivity
- Up to four 3 or 4 wire Pt 100/1000 sensor inputs
|
|
Squirrel SQ2020型數據記錄儀的技術參數
|
| |
| 產品類型 |
入門級 |
標準型 |
高速型
Wi-Fi版 |
高性能型
Wi-Fi版 |
高性能型
Wi-Fi版 |
溫度型 |
| 產品型號(SQ) |
2010 |
2020-1F8 |
2020-2F8 |
2040-2F16 |
2040-4F16 |
OQ610-S |
| 模擬信號通道 |
4～8 |
8～16 |
8～16 |
16～32 |
16～32 |
無 |
| 高電壓通道 |
無 |
2 |
2 |
2 |
2 |
無 |
| 數字通道 |
8 |
8 |
8 |
8 |
8 |
無 |
| 計數通道 |
2 |
4 |
4 |
4 |
4 |
無 |
輸
入
類
型 |
-電流 |
標配 |
標配 |
標配 |
標配 |
標配 |
無 |
| -電壓 |
標配 |
標配 |
標配 |
標配 |
標配 |
無 |
| -電阻 |
2-線 |
2-線 |
2-/3-/或4-線 |
2-線 |
2-/3-/或4-線 |
無 |
| -3或4線*** |
無 |
無 |
4 |
無 |
8 |
無 |
| -溫度 |
標配 |
標配 |
標配 |
標配 |
標配 |
6xK/T熱電偶 |
| 最大記錄數/秒 |
10 (1ch) |
20 (1ch) |
100 (2ch) |
100 (2ch) |
100 (4ch) |
8 |
| 準確度 |
0.10% |
0.05% |
0.05% |
0.05% |
0.05% |
0.5°C |
| 顯示方式(LCD) |
128x64 dot |
128x64 dot |
128x64 dot |
128x64 dot |
128x64 dot |
2x16字符 |
| 存儲器容量(計數) |
14百萬 |
14百萬 |
14百萬 |
14百萬 |
14百萬 |
0.25百萬 |
| 外接-MMC/SD卡 |
無 |
標配 |
標配 |
標配 |
標配 |
無 |
| RS232接口 |
標配 |
標配 |
標配 |
標配 |
標配 |
無 |
| USB 接口 |
標配 |
標配 |
標配 |
標配 |
標配 |
標配 |
| 局域網** |
無* |
無* |
標配 |
標配 |
標配 |
無 |
| Wi-Fi選擇** |
無* |
無* |
標配 |
標配 |
標配 |
無 |
| 報警輸出 |
2 |
4 |
4 |
4 |
4 |
無 |
| 傳感器電源輸出 |
常規5VDC@50 mA/外供28V(SQ2010)&18V(其它)@100mA |
無 |
| 設定/分析軟件 |
SquirelView/SquirrelView Plus |
| 使用環境 |
-30～65℃/RH<95% (不結露) |
* Can use RS232 to Ethernet converter and RS232 to Wi-Fi converter, see section for accessories
** for Ethernet or Wi-Fi networks external power pack is required
*** Pt100/Pt1000
|
| |
 |
